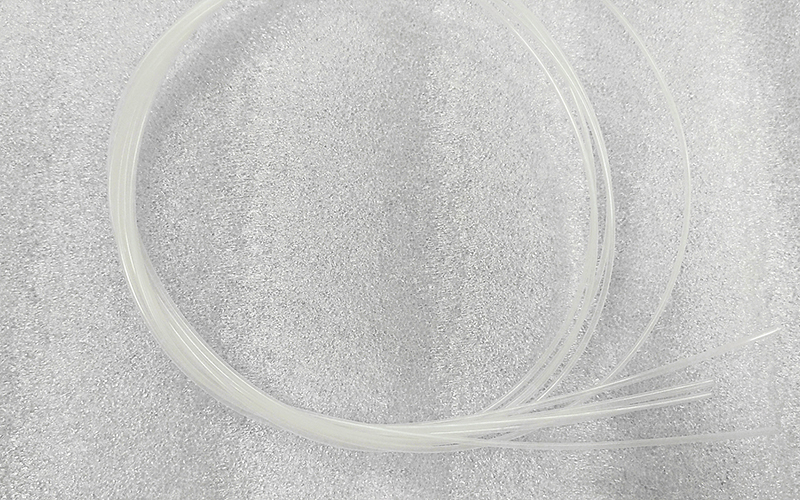

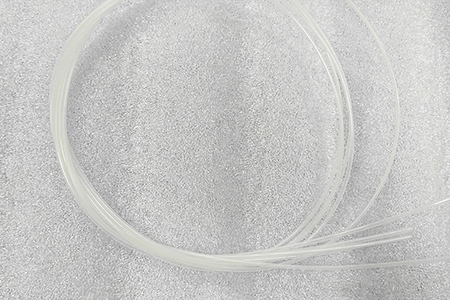

PVDF Heat Shrink Tubing

Request a Quote

Applications

Our PVDF heat shrink tubing offers superior heat resistance, abrasion resistance, mechanical durability, and resistance to chemical media. It is designed to thrive in environments with corrosive air, thermal cycling, or mechanical stress.
It offers superior flame retardancy, widely used for wiring in automobiles, aviation, marine vessels, and electronic devices.
Its transparency makes it suitable for encapsulating electronic components and providing clear identification.

Features

Technical Data

Properties	Test Method	Performance 150℃ (flexible)	Performance 175℃ (semi-rigid)
Specific gravity	ASTMD792	≤1.8g/cm³	≤1.8g/cm³
Tensile strength	ASTMD2671	≥24.5MPa	≥34.5MPa
Ultimate elongation	ASTMD2671	≥150%	≥150%
Ultimate elongation after aging	225℃ (flexible), 250℃ (semi-rigid)/168h	≥100%	≥50%
Heat shock	275℃ (flexible), 300℃ (semi-rigid)/4h	No flowing, no cracking	No flowing, no cracking
Cold bend	-55℃/4h	No cracking	No cracking
Dielectric strength	ASTMD2671	≥15.7kV/mm	≥31.5kV/mm
Volume resistivity	ASTMD257	≥1.0×10¹³ Ω·cm	≥1.0×10¹³ Ω·cm
Flammability	UL224	Pass VW-1	Pass VW-1

Dimensions

Shrink Ratio: 2:1

Size	Inside Diameter (mm)		Wall Thickness After Recovery (mm)	Length (m)
Size	As Supplied (Min.)	After Recovery (Max.)	Wall Thickness After Recovery (mm)	Length (m)
Ø1.2	1.2	0.6	0.25±0.05	200
Ø1.6	1.6	0.8	0.25±0.05	200
Ø2.4	2.4	1.2	0.25±0.05	200
Ø3.2	3.2	1.6	0.25±0.05	200
Ø4.8	4.8	2.4	0.30±0.05	100
Ø6.4	6.4	3.2	0.33±0.05	100
Ø9.5	9.5	4.8	0.33±0.05	100
Ø12.7	12.7	6.4	0.33±0.05	100
Ø19.1	19.1	9.5	0.43±0.08	50
Ø25.4	25.4	12.7	0.48±0.08	50
