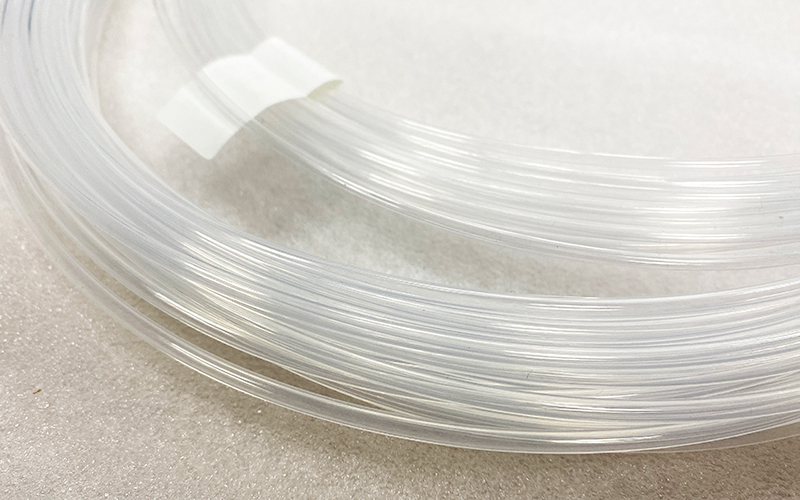

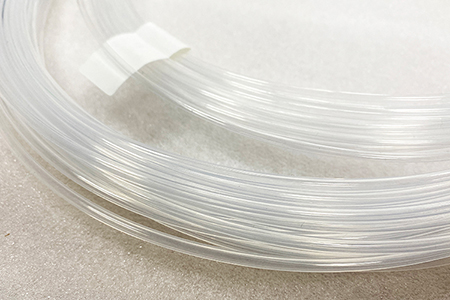

    PFA Heat Shrink Tubing / Non-Shrink Tubing

    CYG-PFA

    PFA Heat Shrink Tubing / Non-Shrink Tubing

    • Material: PFA
    • Weather resistance, high and low-temperature resistance, operating temperature: -200℃~260℃
    • Ideal mechanical properties, non-stick properties, easy to clean
    • Chemical inertness, high insulation, low friction, non-toxicity, physiological inertness
    • Low water absorption, flame resistance
    Request a Quote
    Applications
    • Our PFA heat shrink tubing exhibits superior heat resistance, acid resistance, abrasion resistance, non-stick properties, UV resistance, high transparency, and flame retardancy. It finds broad applications in aerospace, papermaking, office equipment, communication devices, and food packaging.
    • Our PFA non-shrink tubing also shows ideal heat resistance, acid resistance, abrasion resistance, non-stick properties, UV resistance, and high transparency. It is extensively used in power plants for heat exchangers and steam piping, the chemical industry for conveying high-purity reagents and various corrosive media, the communication industry for wire and cable sheathing at various frequencies, as well as in semiconductor manufacturing, aerospace, aviation, and medical devices.
    Features
    • Weather resistance, high and low-temperature resistance, operating temperature: -200℃~260℃
    • Ideal mechanical properties, non-stick properties, easy to clean
    • Chemical inertness, high insulation, low friction, non-toxicity, physiological inertness
    • Low water absorption, flame resistance
    Technical Data
    Properties Test Method Performance
    Specific gravity ASTMD792 2.12g/cm³ ~2.17g/cm³
    Water absorption ASTMD570 <0.01%
    Oxygen index ASTMD2863 >95%
    Tensile strength ASTMD638 25MPa~35MPa
    Ultimate elongation ASTMD638 250%~420%
    Dielectric constant (60Hz) ASTMD1531 2.1
    Dielectric constant (60MHz) ASTMD1531 2.1
    Volume resistivity ASTMD257 >1.0×1018 Ω·cm
    Dielectric strength ASTMD149 >20kV/mm
    Melting point - 305℃±10℃
    Flammability UL224 VW-1
