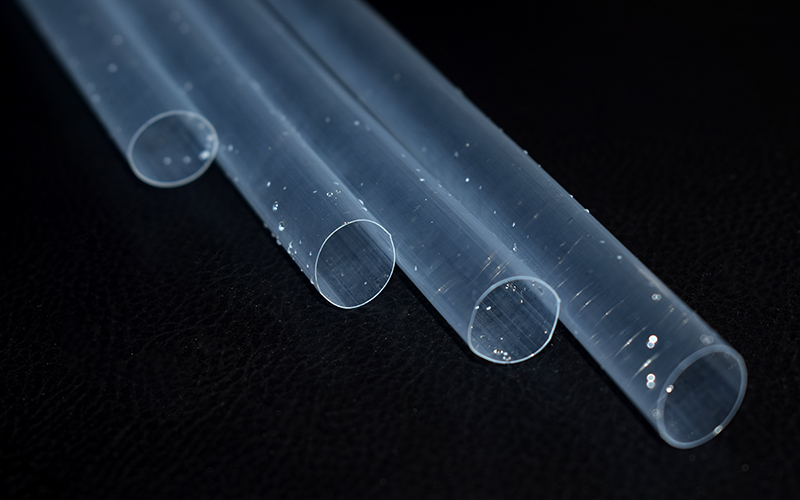

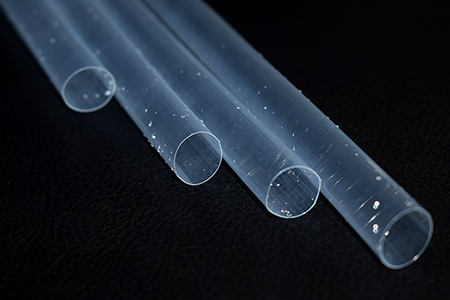

FEP Heat Shrink Tubing / Non-Shrink Tubing

Material: FEP, F46
Weather resistance, high and low-temperature resistance
Operating temperature: -200℃~200℃
Superior mechanical properties, non-stick properties, easy to clean, low water absorption, flame resistance

Request a Quote

Applications

This semi-rigid, highly transparent, and wear-resistant heat shrink tubing offers heat resistance, acid resistance, alkali resistance, abrasion resistance, non-stick properties, and high transparency. It finds extensive applications in aerospace, papermaking, communication equipment, medical devices, and military equipment.
Additionally, our FEP non-shrink tubing is widely used in power plants for heat exchangers, steam piping, the chemical industry for conveying high-purity reagents and various corrosive media, the communication industry for wire and cable sheathing at various frequencies, semiconductor manufacturing equipment, aerospace, aviation, medical devices, and other industries.

Features

Weather resistance, high and low-temperature resistance
Operating temperature: -200℃~200℃
Superior mechanical properties, non-stick properties, easy to clean, low water absorption, flame resistance
Chemical inertness, high insulation, low friction, non-toxicity, physiological inertness
UL200℃(E180908) certified

Technical Data

Properties	Test Method	Performance
Specific gravity	ASTMD792	2.12g/cm³ ~2.17g/cm³
Water absorption	ASTMD570	＜0.01%
Oxygen index	ASTMD2863	＞95%
Tensile strength	ASTMD638	18MPa~34MPa
Ultimate elongation	ASTMD638	245%~400%
Dielectric constant (60Hz)	ASTMD1531	2.1
Dielectric constant (60MHz)	ASTMD1531	2.1
Dielectric loss angle tangent (105 Hz)	ASTMD1531	0.0003
Dielectric loss angle tangent (106 Hz)	ASTMD1531	0.0006
Volume resistivity	ASTMD257	＞1.0×10¹⁸ Ω·cm
Dielectric strength	ASTMD149	＞20kV/mm~24kV/mm
Melting point	-	265℃±15℃
Flammability	UL224	VW-1
