Dual Wall Heat Shrink Tubing for Automotive

High Quality Dual Wall Heat Shrink Tubing for Automotive Applications

At KTG, we specialize in providing high-quality dual wall heat shrink tubing for various automotive applications. Our dual wall tubing incorporates an inner wall of evenly distributed hot-melt adhesive, offering not only the performance characteristics of regular heat shrink tubing but also sealing and corrosion protection capabilities. This makes it an ideal choice for wire harnesses, terminal connections, and other areas that require insulation and corrosion resistance.

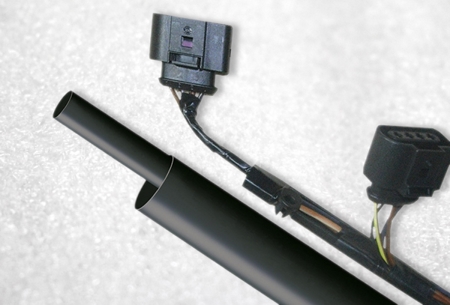

Semi-Rigid Dual Wall Heat Shrink Tubing, CYG-DWT-RO

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Shrink temperature: 100°C~150°C
Continuous operating temperature: -40°C~125°C

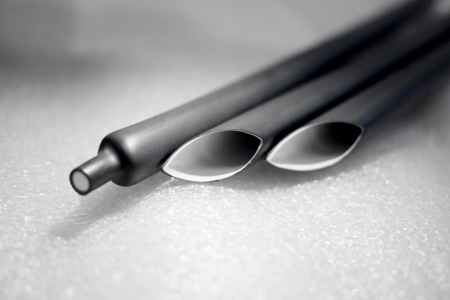

Flame-Retardant Semi-Rigid Dual Wall Heat Shrink Tubing, CYG-DWT-FR

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Shrink temperature: 100°C~150°C
Continuous operating temperature: -40°C~125°C

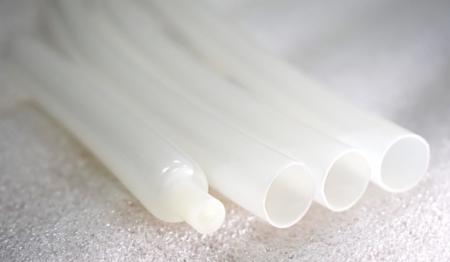

Clear Semi-Rigid Dual Wall Heat Shrink Tubing, CYG-DWT-RX

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Shrink temperature: 100°C~150°C
Continuous operating temperature: -40°C~125°C

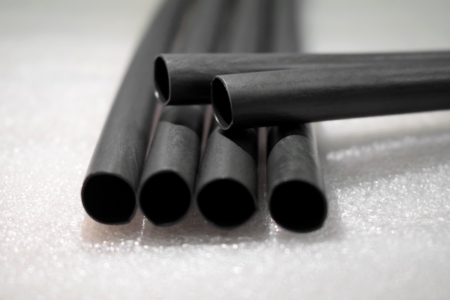

High Temperature Semi-Rigid Dual Wall Heat Shrink Tubing, CYG-DWT-VTS

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Shrink temperature: 100°C~150°C
Continuous operating temperature: -40°C~125°C

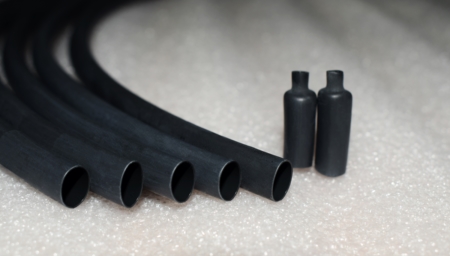

Flexible Dual Wall Heat Shrink Tubing, CYG-DWT-VTA

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Shrink temperature: 80°C~120°C
Continuous operating temperature: -40°C~110°C

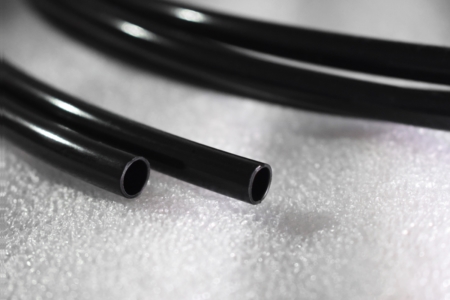

Abrasion-Resistant Semi-Rigid Dual Wall Heat Shrink Tubing, CB-DWT (2000)

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 1.5:1
Minimum shrink temperature: 110°C
Continuous operating temperature: -35°C~125°C

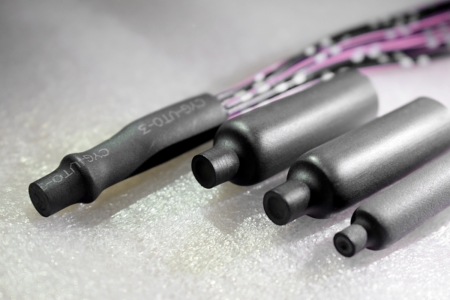

Semi-Rigid Heat Shrink End Cap, CYG-CAP (VTO)

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Operating temperature: -40°C~125°C
Initial shrink temperature: 100°C

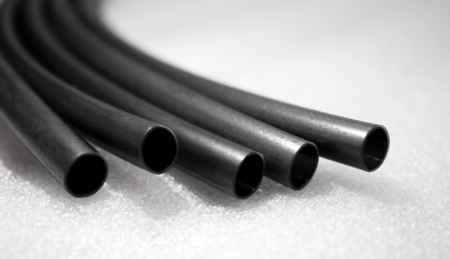

Semi-Rigid Dual Wall Heat Shrink Tubing, CYG-DWT-VTQ

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Continuous operating temperature: -40°C~125°C

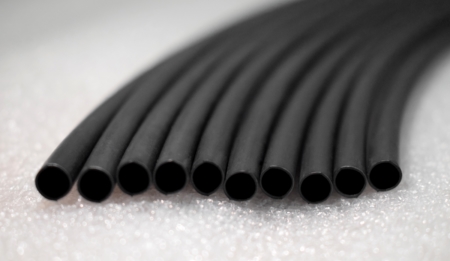

Waterproof Seal Flexible Dual Wall Heat Shrink Tubing, CYG-DWT-VTH

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratio: 4:1
Shrink temperature: 80°C~120°C
Continuous operating temperature: -55°C~125°C

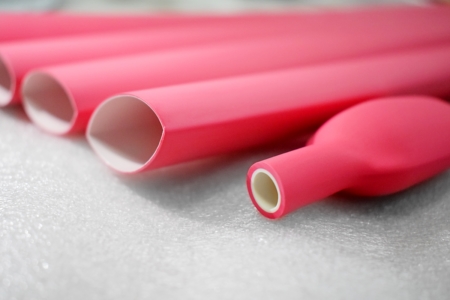

Very Flexible Dual Wall Heat Shrink Tubing, CYG-DWT

Outer jacket: Cross-linked modified polyolefin
Inner wall: Modified hot-melt adhesive
Shrink ratios: 2:1, 3:1, 4:1
