PTFE Tubing

CB-TT (L/T/S)

Non-Shrink Tubing for Electronic Applications

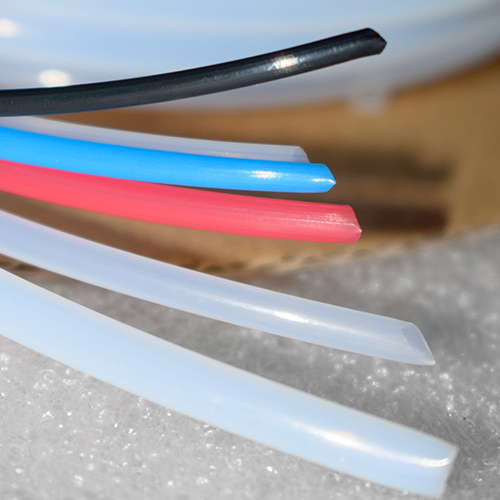

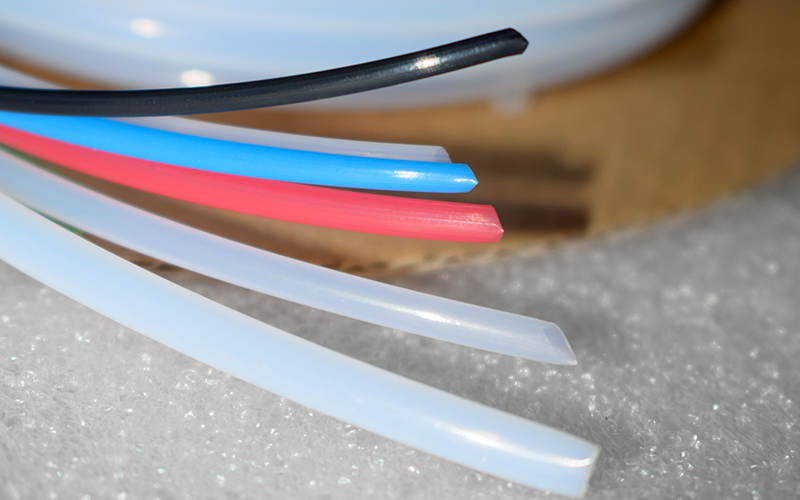

Our tubing made from PTFE material, exhibits high temperature resistance (260°C), corrosion resistance, high insulation, and high strength. Our tubing of models CB-TT-L (150V), CB-TT-T (300V), and CB-TT-S (600V) have passed UL certification (Certification No.: E180918) and are compatible with the UL 1446 insulation system (PD GE ORGE CO/RIPLEY RESIN DASH2B-5 system).

Material: PTFE (Polytetrafluoroethylene)

Request a Quote

Applications

It finds extensive use in crucial technological industries such as electronics, computers, heating elements, aerospace, military, communications, micro transformers, special sensors, artificial blood vessels, and more.

Features

High-temperature rating
High voltage withstand
High dielectric strength
Low friction coefficient
Good weather resistance
Resistant to chemical solvents
Customizable color and size options

Categories

Rated Voltage	Model	Abbreviation
150V	CB-TT-L	L
300V	CB-TT-T	T
600V	CB-TT-S	S

Technical Data

Properties	Test Method	Performance
Specific gravity	ASTMD 792	2.13~2.20g/cm³
Melting point (DSC)	ASTMD 3418	327±10℃
Tensile strength	ASTMD 638	≥20.7MPa
Ultimate elongation	ASTMD 638	≥200%
Cold bend	UL224 5.9	-30±1℃/4h, no cracking
Heat aging	UL224 5.1	232±1℃/7d
Longitudinal change	UL224 5.15	200℃/3m ≤±1%
Dielectric strength (2500V/60s)	UL224 5.6	No breakdown
Dielectric strength (2500V/60s after aging)	Aging: UL224 5.1 Testing: UL224 5.6	No breakdown
Volume resistivity	ASTMD 257	≥10¹⁵ Ω·cm
Flammability	UL224 5.11	VW-1

Dimensions

Size (mm)	Inside Diameter (mm)	Wall Thickness (mm)
AWG	Inside Diameter (mm)	S-type	T-type	L-type
30	0.30±0.05	0.23±0.05	0.23±0.05	0.15±0.04
28	0.38±0.05
26	0.46±0.05
24	0.56±0.05	0.30±0.06	0.25±0.06
23	0.66±0.05
22	0.71±0.05
21	0.81±0.05	0.40±0.07	0.30±0.06
20	0.86±0.05
19	0.96±0.05
18	1.07±0.05
17	1.19±0.05
16	1.34±0.05
15	1.50±0.05
14	1.68±0.08			0.20±0.05
13	1.93±0.08
12	2.16±0.08
11	2.41±0.08
10	2.69±0.08
9	3.00±0.08	0.50±0.07	0.38±0.07
8	3.38±0.08
7	3.76±0.08
6	4.22±0.08			0.25±0.06
5	4.72±0.10
4	5.28±0.10
3	5.94±0.10
2	6.68±0.10
1	7.46±0.10
0	8.38±0.10
