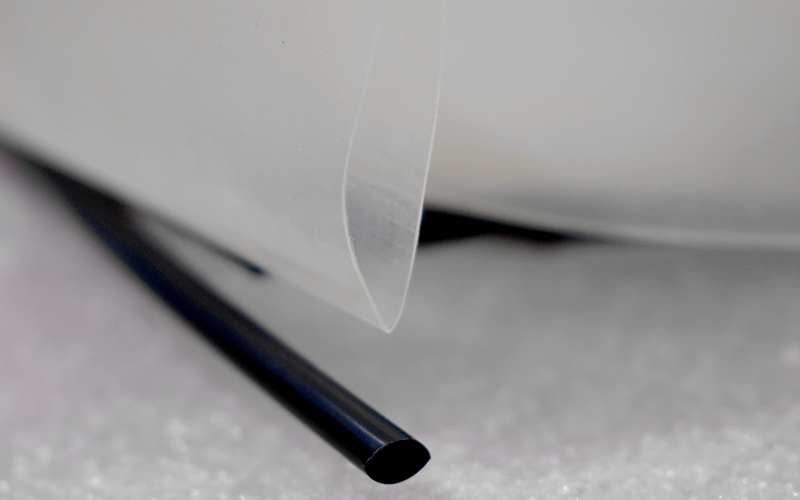

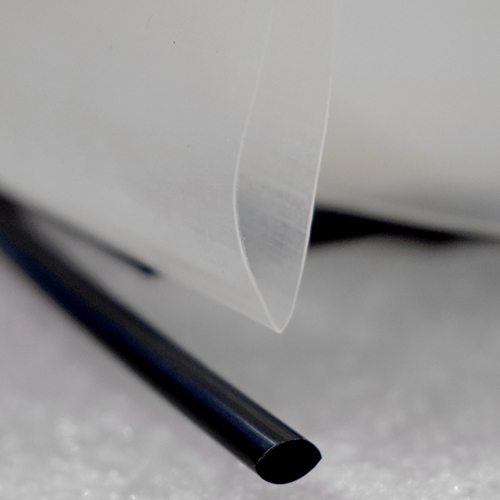

Clear PVDF Tubing

Flame-Retardant Heat Shrink Tubing for Electronic Applications

Request a Quote

Applications

This product offers ideal heat resistance, abrasion resistance, resistance to mechanical damage, and resistance to chemical substances, making it suitable for environments with corrosive air, thermal cycling, or mechanical stress.
It exhibits superior flame-retardant properties and is commonly used in applications such as automotive, aviation, marine, and electronic equipment wiring.
Furthermore, its transparency is ideal for encapsulation and distinguishing of electronic components.

Features

Technical Data

Properties	Test Method	Performance 150℃ (flexible)	Performance 175℃ (semi-rigid)
Specific gravity	ASTMD792	≤1.8g/cm³	≤1.8g/cm³
Tensile strength	ASTMD2671	≥24.5MPa	≥34.5MPa
Ultimate elongation	ASTMD2671	≥150%	≥150%
Ultimate elongation after aging	225℃ (flexible), 250℃ (semi-rigid)/168h	≥100%	≥50%
Heat shock	275℃ (flexible), 300℃ (semi-rigid)/4h	No flowing, no cracking	No flowing, no cracking
Cold bend	-55℃/4h	No cracking	No cracking
Dielectric strength	ASTMD2671	≥15.7kV/mm	≥31.5kV/mm
Volume resistivity	ASTMD257	≥1.0×10¹³ Ω·cm	≥1.0×10¹³ Ω·cm
Flammability	UL224	Pass VW-1	Pass VW-1

Dimensions

Shrink Ratio: 2:1

Size	Inside Diameter (mm)		Wall Thickness After Recovery (mm)	Length (m)
Size	As Supplied (Min.)	After Recovery (Max.)	Wall Thickness After Recovery (mm)	Length (m)
Ø1.2	1.2	0.6	0.25±0.05	200
Ø1.6	1.6	0.8	0.25±0.05	200
Ø2.4	2.4	1.2	0.25±0.05	200
Ø3.2	3.2	1.6	0.25±0.05	200
Ø4.8	4.8	2.4	0.30±0.05	100
Ø6.4	6.4	3.2	0.33±0.05	100
Ø9.5	9.5	4.8	0.33±0.05	100
Ø12.7	12.7	6.4	0.33±0.05	100
Ø19.1	19.1	9.5	0.43±0.08	50
Ø25.4	25.4	12.7	0.48±0.08	50
