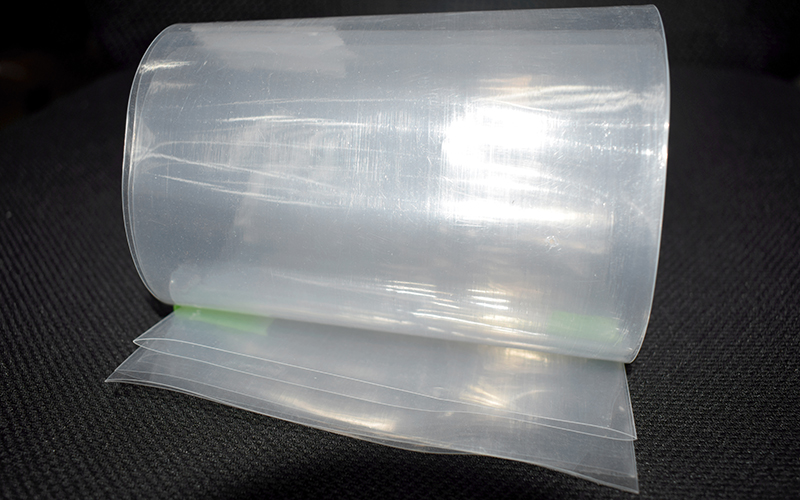

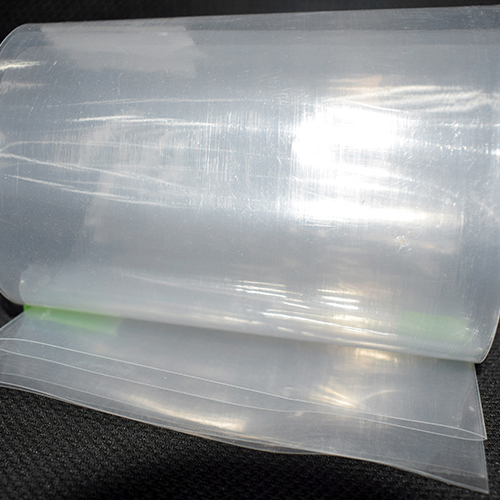

Halogen-Free PET Heat Shrink Tubing

Single Wall Heat Shrink Tubing for Electronic Applications

Modified polyester
Shrink Ratio: 2:1
Halogen-free and compliant with environmental standards such as RoHS, REACH, and SONY
The ideal alternative to PVC heat shrink films

Request a Quote

Applications

Our tubing is widely used in electronic components such as electrolytic capacitors, inductors, and high-end rechargeable batteries.
It serves as an ideal packaging and protective solution for toys, and medical devices.

Features

Halogen-free and compliant with environmental standards such as RoHS, REACH, and SONY
Free from substances prohibited by primary environmental management regulations, including cadmium (Cd), lead (Pb), mercury (Hg), hexavalent chromium (Cr6+), polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), polychlorinated biphenyls (PCB), polychlorinated terphenyls (PCT), polychlorinated naphthalenes (PCN)
Non-toxic and recyclable, causing no harm to human health or the environment
The ideal alternative to PVC heat shrink films

Technical Data

Properties	Performance
Appearance	No pollution and foreign matters
Operating temperature	-40℃~125℃
Bending (280mm)	Ø8mm (or smaller): < 3.0mm Ø10mm (or greater): < 3.5mm
Specific gravity	1.2g/cm³ ~1.5g/cm³
Tensile strength	5.0×107 N/m²~10.0×107 N/m²
Ultimate elongation	50%~350%
Water absorption	< 2.0%
Dielectric breakdown strength	>10kV/mm
Surface resistivity	>1.0×10⁹ Ω·cm
Volume resistivity	>1.0×10 ¹⁴ Ω·cm

Dimensions
