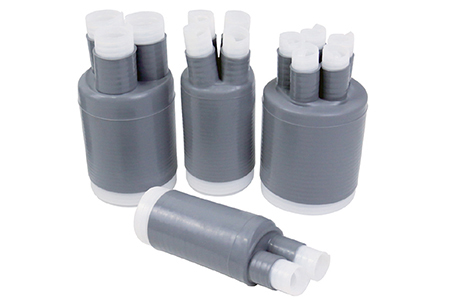

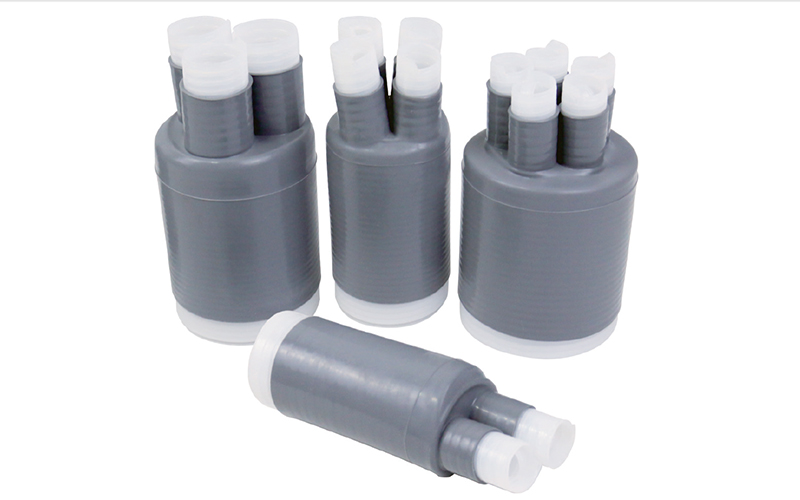

Cold Shrink Breakout Boot

Material: silicone rubber
Color: gray

Our cold shrink breakout boot is designed to provide ideal sealing and protection for cables. With its superior material and precise engineering, it guarantees reliable performance and convenient installation. Available in multiple specifications, including 3-core, 4-core, 5-core, and 6-core.

Request a Quote

Dimensions

Size	Number of Cores	Body Diameter	Application Range (mm)	Finger Diameter	Application Range (mm)	Finger Length (mm)	Body Length (mm)
WCSF 3-1(1#)	2	80	Ø46-Ø67	32	Ø19-Ø26	45	130
WCSF 2-1(1#)		80	Ø34-Ø67	32	Ø15-Ø25	35	120
WCSF 3-(-1)(-1#)		56	Ø30-Ø43	20	Ø10-Ø15	35	105
WCSF 3-2(2#)		47	Ø23-Ø37	20	Ø8-Ø15	35	100
WCSF 2-2(2#)	3	88	Ø54-Ø78	35	Ø21-Ø31	45	135
WCSF 3-(-2)(-2#)		110	Ø44-Ø95	47	Ø20-Ø40	35	130
WCSF 3-3(3#)		65	Ø36-Ø55	25	Ø13-Ø20	35	125
WCSF 2-3(3#)		65	Ø30-Ø55	25	Ø10-Ø20	35	110
WCSF 3-4(4#)		104	Ø62-Ø90	40	Ø25-Ø33	45	150
WCSF 2-4(4#)		120	Ø72-Ø105	47	Ø31-Ø40	45	165
WCSF 3-5(5#)		140	Ø88-Ø120	60	Ø36-Ø52	55	180
WCSF 3-5A1(6#)		150	Ø88-Ø128	65	Ø36-Ø57	55	180
WCSF 3-5A2(7#)		165	Ø88-Ø138	70	Ø36-Ø62	55	180
WCSF 4-1(1#)	4	60	Ø26-Ø25	20	Ø10-Ø14	35	126
WCSF 4-2(2#)		70	Ø36-Ø55	25	Ø12-Ø17	40	137
WCSF 4-3(3#)		88	Ø51-Ø75	32	Ø14-Ø25	40	145
WCSF 4-4(4#)		120	Ø56-Ø92	47	Ø19-Ø40	40	160
WCSF 5-1(1#)	5	70	Ø36-Ø62	20	Ø10-Ø14	40	123
WCSF 5-2(2#)		88	Ø46-Ø73	25	Ø12-Ø17	40	134
WCSF 5-3(3#)		110	Ø59-Ø95	35	Ø16-Ø27	45	138
WCSF 5-3A(4#)		120	Ø59-Ø100	40	Ø16-Ø32	45	138
