CB-301

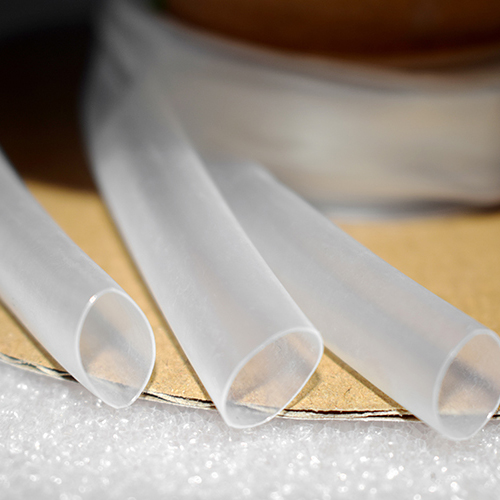

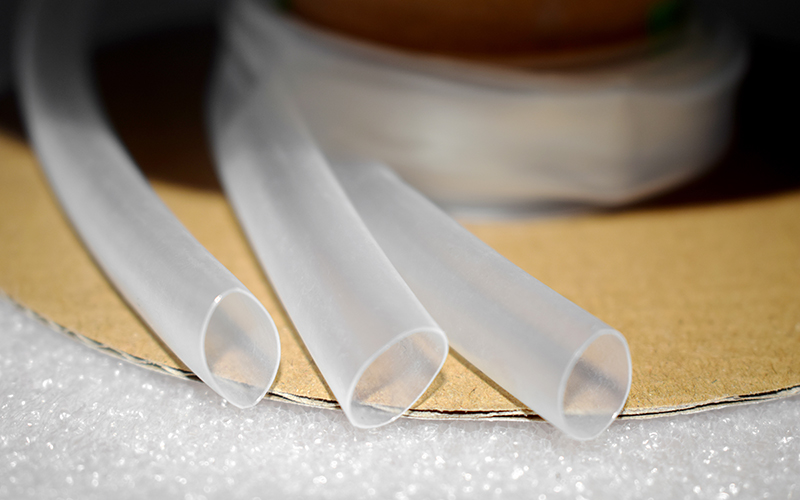

Solvent / Chemical Resistant Heat Shrink Tubing

Single Wall Heat Shrink Tubing for Electronic Applications

Modified polyolefin
Shrink Ratio: 2:1
High resistance to solvents, acids, alkalis, and oils
Glossy finish with semi-rigid structure and superior insulation performance
Halogen-free and compliant with environmental standards such as RoHS, REACH, and SONY

Request a Quote

Applications

Our tubing is widely used in industries such as electronics, automotive, and aerospace, for applications including automotive fuel lines, refrigerator condenser tubes, and more.

Features

High resistance to solvents, acids, alkalis, and oils
Glossy finish with semi-rigid structure and superior insulation performance
Halogen-free and compliant with environmental standards such as RoHS, REACH, and SONY

Technical Data

Properties	Test Method	Performance	Typical Value
Shrink temperature	UL224	120℃	120℃
Continuous operating temperature	UL224	-55℃~105℃	-55℃~105℃
Axial shrinkage	ASTMD2671	-5~5％	-3％
Radial shrinkage	ASTMD2671	≥50％	55％
Tensile strength	ASTMD638	≥10.4MPa	14.1MPa
Ultimate elongation	ASTMD638	≥200％	400％
Aging in hot air oven (135℃±2℃/168h)	-	-	-
Tensile strength after aging	ASTMD638	≥7.3MPa	10.1MPa
Ultimate elongation after aging	ASTMD638	≥100％	200%
Operating voltage	UL224	300V/600V	300V/600V
Volume resistivity	ASTMD876	≥1.0×10¹² Ω·cm	2.3×10¹⁴ Ω·cm
Dielectric strength (2500V/60s)	UL224	No breakdown	No breakdown
Heat shock (180℃±3℃/4h)	UL224	No dripping, no flowing, no cracking	No dripping, no flowing, no cracking
Concentricity	ASTMD2671	≥70%	85%

Dimensions

600V Heat Shrink Tubing

Size	As Supplied (mm)		After Recovery (mm)
Size	Inside Diameter	Wall Thickness	Inside Diameter	Wall Thickness
Ø0.7	1.0+0.2/-0.1	0.18±0.05	≤0.40	0.32±0.08
Ø0.8	1.2+0.2/-0.1	0.18±0.05	≤0.45	0.34±0.08
Ø1.0	1.5+0.2/-0.1	0.18±0.05	≤0.60	0.36±0.08
Ø1.5	2.1+0.2/-0.1	0.18±0.05	≤0.80	0.36±0.08
Ø2.0	2.5+0.2/-0.1	0.20±0.05	≤1.00	0.42±0.08
Ø2.5	3.0+0.2/-0.1	0.22±0.05	≤1.25	0.46±0.08
Ø3.0	3.5+0.2/-0.1	0.22±0.05	≤1.50	0.46±0.08
Ø3.5	4.0+0.2/-0.1	0.22±0.05	≤1.75	0.46±0.08
Ø4.0	4.6+0.2/-0.1	0.23±0.05	≤2.00	0.46±0.08
Ø4.5	5.0+0.2/-0.1	0.25±0.05	≤2.25	0.46±0.08
Ø5.0	5.5+0.2/-0.1	0.25±0.05	≤2.50	0.50±0.08
Ø5.5	6.0+0.2/-0.1	0.25±0.05	≤2.75	0.50±0.08
Ø6.0	6.5+0.2/-0.1	0.25±0.05	≤3.00	0.55±0.10
Ø6.5	6.9+0.2/-0.1	0.25±0.05	≤3.25	0.55±0.10
Ø7.0	7.5+0.2/-0.1	0.25±0.05	≤3.50	0.55±0.10
Ø8.0	8.5+0.2/-0.1	0.28±0.06	≤4.00	0.58±0.10
Ø9.0	9.5+0.2/-0.1	0.28±0.06	≤4.50	0.58±0.10
Ø10.0	10.5+0.3/-0.1	0.28±0.06	≤5.00	0.58±0.10
Ø11.0	11.5+0.3/-0.1	0.28±0.06	≤5.50	0.58±0.10
Ø12.0	12.5+0.3/-0.1	0.28±0.06	≤6.00	0.58±0.10
Ø13.0	13.5+0.3/-0.1	0.28±0.06	≤6.50	0.58±0.10
Ø14.0	14.5+0.3/-0.1	0.28±0.06	≤7.00	0.58±0.10
Ø15.0	15.5+0.3/-0.1	0.28±0.06	≤7.50	0.58±0.10
Ø16.0	16.5+0.3/-0.1	0.28±0.06	≤8.00	0.58±0.10
Ø17.0	17.5+0.3/-0.1	0.28±0.06	≤8.50	0.58±0.10
Ø18.0	18.5+0.3/-0.1	0.32±0.08	≤9.00	0.68±0.10
Ø20.0	20.6+0.5/-0.2	0.32±0.08	≤10.00	0.68±0.10
Ø22.0	22.6+0.7/-0.2	0.35±0.08	≤11.00	0.72±0.12
Ø25.0	25.6+0.7/-0.2	0.40±0.10	≤12.50	0.78±0.12
Ø28.0	28.6+0.7/-0.2	0.40±0.10	≤14.00	0.78±0.12
Ø30.0	30.6+0.7/-0.2	0.40±0.10	≤15.00	0.82±0.12
Ø35.0	35.6+0.7/-0.2	0.45±0.10	≤17.50	0.92±0.12
Ø40.0	41.0±0.5	0.50±0.12	≤20.0	1.00±0.15
Ø45.0	46.0±0.5	0.50±0.12	≤22.5	1.00±0.15
Ø50.0	51.0±0.5	0.55±0.15	≤25.0	1.10±0.15
Ø55.0	55.0±1.0	0.55±0.15	≤27.5	1.10±0.15
Ø60.0	60.5±1.0	0.60±0.15	≤30.0	1.25±0.20
Ø70.0	71.0±1.0	0.60±0.15	≤35.0	1.25±0.20
Ø80.0	81.0±1.0	0.60±0.15	≤40.0	1.25±0.20
Ø90.0	91.0±1.0	0.60±0.15	≤45.0	1.25±0.20
Ø100.0	101.0±1.0	0.60±0.15	≤50.0	1.25±0.20
