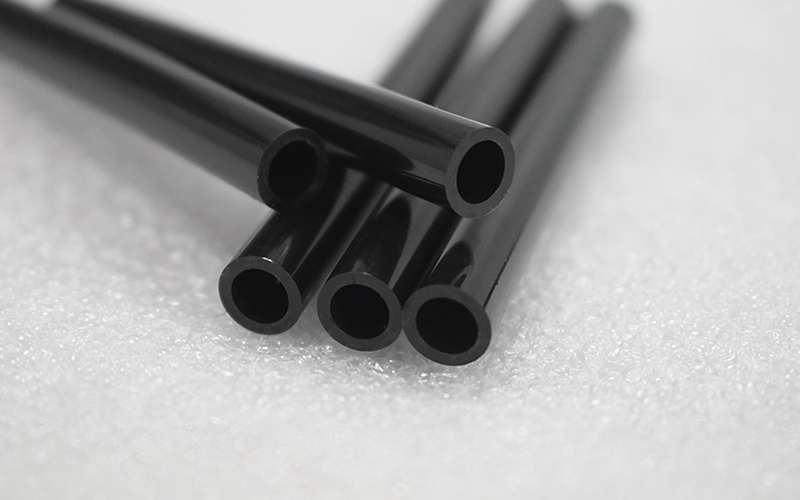

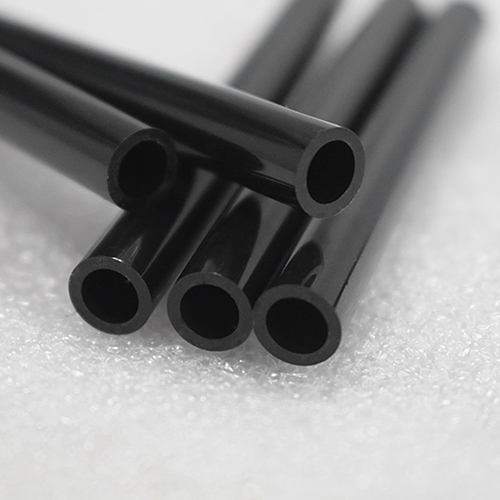

Flexible Shaft Protection Tubing

CYG-TPU-CA

Flexible Shaft Protection Tubing

Non-Shrink Tubing for Automotive
  • Thermoplastic polyurethane
  • Temperature rating: -40°C to 150°C
  • Ideal abrasion resistance
  • Superior assembly performance
  • Environmental compliance with RoHS requirements
Request a Quote
Applications
  • Our tubing finds extensive applications in the automotive seat industry, offering effective protection for flexible shafts
Features
  • Temperature rating: -40°C to 150°C
  • Ideal abrasion resistance
  • Superior assembly performance
  • Environmental compliance with RoHS requirements
Technical Data
Properties Test Method Performance
Tensile strength DIN EN 60684-2 ≥30MPa
Ultimate elongation DIN EN 60684-2 ≥300%
Tensile strength at 100% elongation DIN EN 60684-2 ≥7Mpa
Abrasion DIN ISO 4649 ＜80mm³
Flammability FMVSS 302 ≤75mm/min
Aging (110℃, 240h) - -
Short-term heat aging - -
Tensile strength after aging DIN EN 60684-2 ＜50%
Ultimate elongation after aging DIN EN 60684-2 ＜50%
Low temperature resistance (-40±1)℃, (22+2)h, bending 90° No cracking
Dimensions
Size Inside Diameter (mm) Wall Thickness (mm)
Min. Max.
Ø5.4 5.3 5.5 1.25±0.1
Ø5.8 5.7 5.9 1.00±0.1
