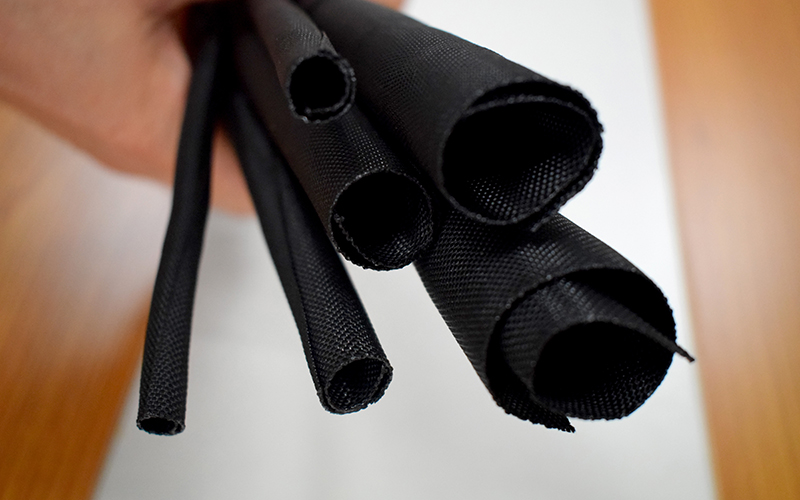

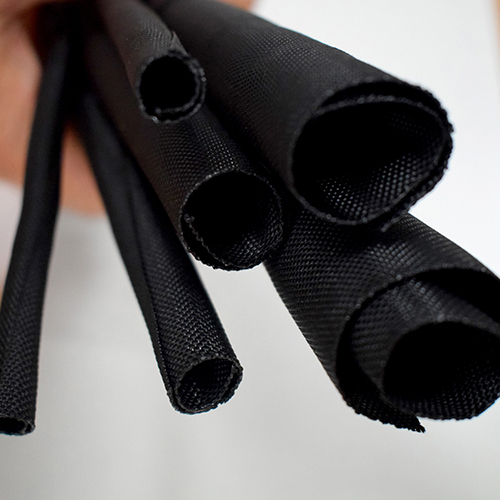

Self Closing Braided Wrap

CYG-SCE

Self Closing Braided Wrap

  • Lengthwise: Polyester multifilament
  • Crosswise: Polyester monofilament
  • Operating temperature: -40℃～150℃
  • High flexibility, abrasion resistance, flame retardancy, and noise reduction
  • Easy installation and removal
Request a Quote
Applications
  • Our self closing braided wrap features a self-closing design, allowing easy installation, removal, and maintenance of cable bundles. It offers high abrasion resistance, shock absorption, noise reduction, and heat dissipation.
  • Widely used in the automotive, aerospace, and electronics industries to protect various wire harnesses and tubing.
Features
  • Operating temperature: -40℃～150℃
  • High flexibility, abrasion resistance, flame retardancy, and noise reduction
  • Easy installation and removal
  • Complies with GMW14327
  • Standard color: black
Technical Data
Properties Test Method Performance
Melting point ASTMD3418 240℃±10℃
Abrasion resistance ISO 6722 >2000 cycles
Flammability FMVSS 302 < 100mm/min
Fluid resistance SAE J2192 Engine oil, gasoline, ethanol gasoline, diesel fuel, power steering fluid, transmission fluid, coolant, battery acid Pass
Dimensions
Size Inside Diameter (mm) Max. Wire Bundle Diameter (mm)
CYG-SCE-5 5.0 6
CYG-SCE-8 8.0 9
CYG-SCE-10 10.0 11
CYG-SCE-13 13.0 14
CYG-SCE-16 16.0 17
CYG-SCE-19 19.0 20
CYG-SCE-25 25.0 27
CYG-SCE-29 29.0 31
CYG-SCE-32 32.0 34
CYG-SCE-38 38.0 40
CYG-SCE-42 42.0 44
CYG-SCE-50 50.0 52
