CB-HFT (YG)

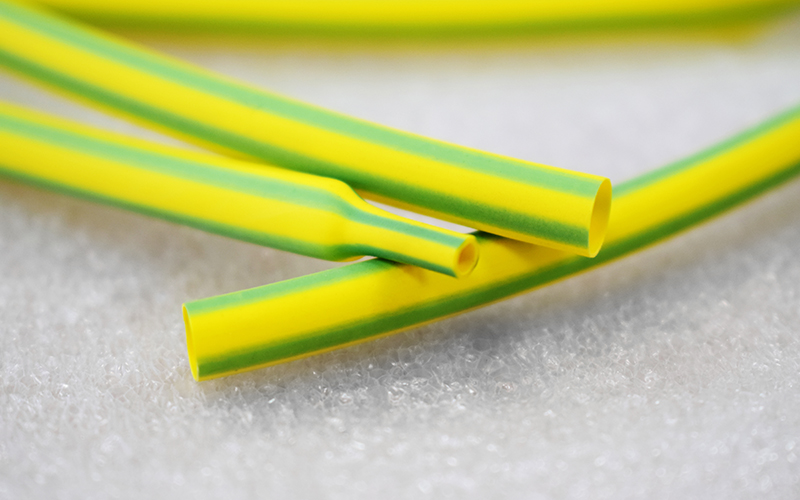

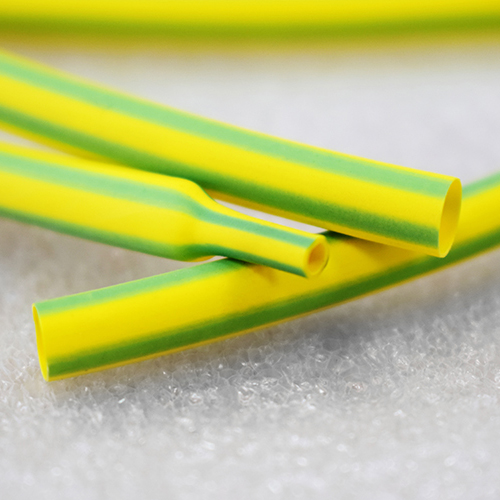

Yellow/Green Striped Heat Shrink Tubing

Single Wall Heat Shrink Tubing for Electronic Applications

Modified polyolefin
Shrink Ratio: 2:1
Flexible and elastic
UL224 VW-1 flame-retardant rating and F-mark certification
UL224 certified (Certification Number: E180908)

Request a Quote

Applications

Featuring yellow and green stripes, our heat shrink tubing is commonly used for wire identification.

Features

Flexible and elastic
Halogen-free and low smoke, complying with environmental standards such as RoHS, REACH, and SONY
UL224 VW-1 flame-retardant rating and F-mark certification
UL224 certified (Certification Number: E180908)
Superior insulation, temperature resistance, and voltage withstand performance

Technical Data

Properties	Test Method	Performance
Shrink temperature	UL224	125℃
Longitudinal change	ASTMD2671	-5％~5％
Tensile strength	ASTMD638	≥10.4MPa
Ultimate elongation	ASTMD638	≥200％
Aging in hot air oven (158℃±2℃/168h)	-	-
Tensile strength after aging	ASTMD638	≥7.3MPa
Ultimate elongation after aging	ASTMD638	≥100%
Operating voltage	UL224	300V/600V
Volume resistivity	ASTMD2671	≥1.0×10¹²Ω·cm
Dielectric strength (2500V/60s)	UL224	No breakdown
Heat shock	UL224	No dripping, no flowing, no cracking
Concentricity	ASTMD2671	≥70%

Dimensions

300V Heat Shrink Tubing

Size	As Supplied (mm)		After Recovery (mm)
Size	Inside Diameter	Wall Thickness	Inside Diameter	Wall Thickness
Ø0.6	0.8+0.2/-0.1	0.15±0.05	≤0.35	0.25±0.06
Ø0.7	0.9+0.2/-0.1	0.13±0.05	≤0.40	0.25±0.06
Ø0.8	1.2+0.2/-0.1	0.13±0.05	≤0.45	0.25±0.06
Ø1.0~Ø1.3	1.3+0.2/-0.1	0.13±0.05	≤0.60	0.25±0.06
Ø1.0~Ø1.6	1.6+0.2/-0.1	0.13±0.05	≤0.60	0.25±0.06
Ø1.5	2.0+0.2/-0.1	0.13±0.05	≤0.80	0.25±0.06
Ø2.0	2.5+0.2/-0.1	0.13±0.05	≤1.00	0.25±0.06
Ø2.5	3.0+0.2/-0.1	0.13±0.05	≤1.25	0.28±0.06
Ø3.0	3.5+0.2/-0.1	0.13±0.05	≤1.50	0.30±0.06
Ø3.5	4.0+0.2/-0.1	0.15±0.05	≤1.75	0.30±0.06
Ø4.0	4.5+0.2/-0.1	0.15±0.05	≤2.00	0.30±0.06
Ø4.5	5.0+0.2/-0.1	0.15±0.05	≤2.25	0.30±0.06
Ø5.0	5.5+0.2/-0.1	0.15±0.05	≤2.50	0.30±0.06
Ø5.5	6.0+0.2/-0.1	0.15±0.05	≤2.75	0.30±0.06
Ø6.0	6.5+0.2/-0.1	0.15±0.05	≤3.00	0.30±0.06
Ø6.5	7.0+0.2/-0.1	0.15±0.05	≤3.25	0.30±0.06
Ø7.0	7.5+0.2/-0.1	0.15±0.05	≤3.50	0.32±0.05
Ø8.0	8.5+0.2/-0.1	0.15±0.05	≤4.00	0.32±0.05
Ø9.0	9.5+0.2/-0.1	0.16±0.05	≤4.50	0.34±0.06
Ø10.0	10.5+0.2/-0.1	0.16±0.05	≤4.00	0.34±0.06
Ø11.0	11.5+0.3/-0.1	0.16±0.05	≤4.50	0.34±0.06
Ø12.0	12.5+0.3/-0.1	0.16±0.05	≤6.00	0.34±0.06
Ø13.0	13.5+0.3/-0.1	0.16±0.05	≤6.50	0.34±0.06
Ø14.0	14.5+0.3/-0.1	0.16±0.05	≤7.00	0.34±0.06
Ø15.0	15.5+0.6/-0.1	0.16±0.05	≤7.50	0.34±0.06
Ø16.0	16.5+0.6/-0.1	0.18±0.05	≤8.00	0.38±0.08
Ø17.0	17.5+0.6/-0.1	0.18±0.05	≤8.50	0.38±0.08
Ø18.0	18.7±0.4	0.18±0.05	≤9.00	0.38±0.08
Ø20.0	21.0±0.5	0.20±0.05	≤10.00	0.42±0.08
Ø22.0	23.0±0.5	0.20±0.05	≤11.00	0.42±0.08
Ø25.0	26.0±0.5	0.20±0.05	≤12.50	0.42±0.08
Ø30.0	31.0±0.5	0.25±0.08	≤15.00	0.48±0.08
Ø35.0	36.0±1.0	0.25±0.08	≤17.50	0.48±0.08

600V Heat Shrink Tubing

Size	As Supplied (mm)		After Recovery (mm)
Size	Inside Diameter	Wall Thickness	Inside Diameter	Wall Thickness
Ø2.0	2.5+0.2/-0.1	0.20±0.05	≤1.00	0.42±0.08
Ø2.5	3.0+0.2/-0.1	0.22±0.05	≤1.25	0.46±0.08
Ø3.0	3.5+0.2/-0.1	0.22±0.05	≤1.50	0.46±0.08
Ø3.5	4.0+0.2/-0.1	0.22±0.05	≤1.75	0.46±0.08
Ø4.0	4.6+0.2/-0.1	0.22±0.05	≤2.00	0.46±0.08
Ø4.5	5.0+0.2/-0.1	0.23±0.05	≤2.25	0.46±0.08
Ø5.0	5.5+0.2/-0.1	0.25±0.05	≤2.50	0.50±0.08
Ø5.5	6.0+0.2/-0.1	0.25±0.05	≤2.75	0.50±0.08
Ø6.0	6.5+0.2/-0.1	0.25±0.05	≤3.00	0.55±0.10
Ø6.5	6.9+0.2/-0.1	0.25±0.05	≤3.25	0.55±0.10
Ø7.0	7.5+0.2/-0.1	0.25±0.05	≤3.50	0.55±0.10
Ø8.0	8.5+0.2/-0.1	0.28±0.06	≤4.00	0.58±0.10
Ø9.0	9.5+0.2/-0.1	0.28±0.06	≤4.50	0.58±0.10
Ø10.0	10.5+0.2/-0.1	0.28±0.06	≤5.00	0.58±0.10
Ø11.0	11.5+0.3/-0.1	0.28±0.06	≤5.50	0.58±0.10
Ø12.0	12.5+0.2/-0.1	0.28±0.06	≤6.00	0.58±0.10
Ø13.0	13.5+0.2/-0.1	0.28±0.06	≤6.50	0.58±0.10
Ø14.0	14.5+0.3/-0.1	0.28±0.06	≤7.00	0.58±0.10
Ø15.0	15.5+0.3/-0.1	0.28±0.06	≤7.50	0.58±0.10
Ø16.0	16.5+0.3/-0.1	0.28±0.06	≤8.00	0.58±0.10
Ø17.0	17.5+0.3/-0.1	0.28±0.06	≤8.50	0.58±0.10
Ø18.0	18.5+0.3/-0.1	0.32±0.08	≤9.00	0.68±0.10
Ø20.0	20.6+0.5/-0.1	0.32±0.08	≤10.0	0.68±0.10
Ø22.0	22.6+0.7/-0.1	0.35±0.08	≤11.0	0.72±0.12
Ø25.0	25.6+0.7/-0.1	0.40±0.10	≤12.5	0.78±0.12
Ø28.0	28.6+0.7/-0.1	0.40±0.10	≤14.0	0.78±0.12
Ø30.0	30.6+0.7/-0.2	0.40±0.10	≤15.0	0.82±0.12
Ø35.0	35.6+0.7/-0.2	0.45±0.10	≤17.5	0.92±0.12
