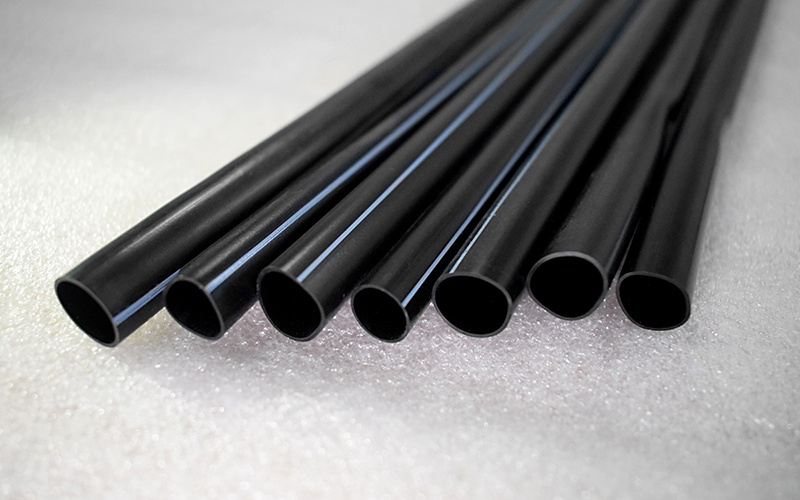

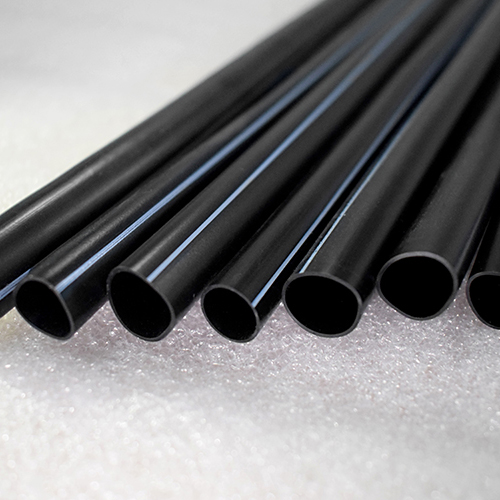

Cold-Resistant PVC Tubing

CYG-PVC (105)

Cold-Resistant PVC Tubing

Non-Shrink Tubing for Automotive Wiring Harness Protection
  • Polyvinyl chloride
  • Temperature rating: -40°C to 105°C
  • Flexible and elastic
  • Excellent electronic and physical properties
  • Ideal assembly performance
Request a Quote
Applications
  • Our cold-resistant PVC tubing is widely used in automotive wiring harnesses, providing reliable protection and high performance in challenging cold environments.
Features
  • Temperature rating: -40°C to 105°C
  • Flexible and elastic
  • Excellent electronic and physical properties
  • Ideal assembly performance
  • Superior cold resistance and flame retardancy
  • Complies with GMW17402, MS221-33, TSC1151G, M4028, and other standards
Technical Data
Properties Test Method Performance
Hardness ASTMD2240 85± (3 Shore A)
Tensile strength ASTMD412 ≥15MPa
Ultimate elongation ASTMD412 ≥250%
Short-term aging (136±1℃/7d) -
Tensile strength after aging Ultimate elongation after aging ASTMD412 ASTMD412 ≥7.3MPa
≥100%
Long-term aging (105℃/3000h) -
Tensile strength after aging Ultimate elongation after aging ASTMD412 ASTMD412 Rate of change ≤50%
Rate of change ≤50%
Heat shock UL224 180℃下4H, bending 360° No dripping, no flowing, no cracking
Cold bend -40℃±1℃, 24H, bending 360° No cracking
Flammability FMVSS 302 Self-extinguishing within 15s
Oil resistance UL224 Level 1-3
Fogging DIN75201-B ＜1.0mg
VOC VDA278 ＜100ug/g
FOG VDA278 ＜250ug/g
Formaldehyde determination VDA275 ＜0.05mg/kg
Odor VDA270-C3 (80℃) ＜3
Dimensions
Size Inside Diameter (mm) Wall Thickness (mm)
Min. Max.
Ø3.0 3.0 3.5 0.5±0.15
Ø4.0 4.0 4.5 0.5±0.15
Ø4.5 4.5 5.0 0.508±0.13
Ø5.0 5.0 5.5 0.5±0.15
Ø5.7 5.7 6.3 0.508±0.13
Ø6.0 6.0 6.6 1.0±0.18
Ø6.3 6.03 7.0 0.508±0.13
Ø8.0 8.0 8.8 1.0±0.18
Ø8.5 8.5 9.4 0.508±0.13
Ø9.0 9.0 9.5 0.5±0.15
Ø10.0 10.0 10.9 1.0±0.18
Ø10.0 10.0 10.5 0.5±0.15
Ø10.1 10.1 11.0 0.508±0.13
Ø11.0 11.0 11.5 0.5±0.15
Ø12.0 12.0 13.1 1.0±0.18
Ø12.1 12.1 13.2 0.508±0.13
Ø14.0 14.0 15.3 1.0±0.18
Ø15.0 15.0 16.5 0.508±0.13
Ø15.0 15.0 15.5 0.5±0.15
Ø16.0 16.0 17.5 1.0±0.18
Ø18.0 18.0 19.8 1.0±0.18
Ø19.0 19.0 21.0 0.508±0.13
Ø25.4 25.4 27.9 0.508±0.13
Ø30.0 30.0 30.5 0.5±0.15
Ø32.0 32.0 33.5 1.0±0.18
