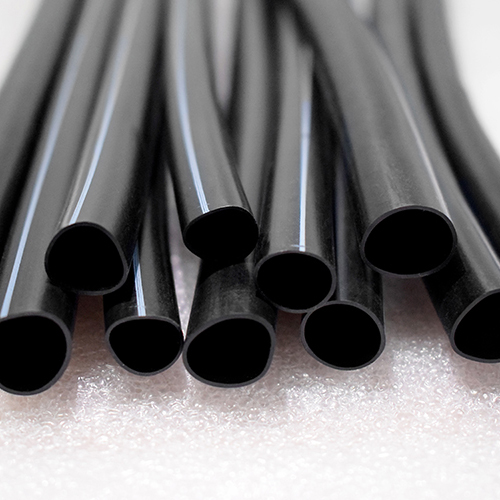

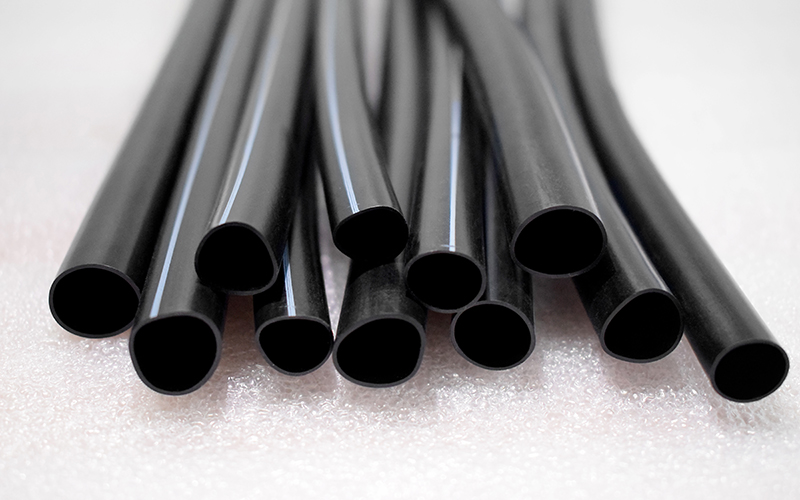

PVC Insulation Tubing

CYG-PVC (90)

PVC Insulation Tubing

Non-Shrink Tubing for Automotive Wiring Harness Protection
  • Polyvinyl chloride
  • Temperature rating: -15°C to 90°C
  • Ideal electronic and physical properties, and high corrosion resistance
  • Superior assembly performance
  • Superior cold resistance and flame retardancy
Request a Quote
Applications
  • Our PVC insulation tubing is widely used in automotive wire harnesses and insulation protection for specific components.
Features
  • Temperature rating: -15°C to 90°C
  • Ideal electronic and physical properties, and high corrosion resistance
  • Superior assembly performance
  • Superior cold resistance and flame retardancy
  • Compliant with Volkswagen TL507 standard
  • Approved by Volkswagen BMG
Technical Data
Properties Test Method Performance
Hardness DIN ISO 7619-1 90± (2 Shore A)
Tensile strength DIN EN ISO 527-1 ≥18MPa
Ultimate elongation DIN EN ISO 527-1 ≥250
Short-term aging (90℃/120h) - -
Hardness after aging Tensile strength after aging Ultimate elongation after aging DIN ISO 7619-1 DIN EN ISO 527-1 DIN EN ISO 527-1 90± (2 Shore A)
≥18MPa
≥250%
Long-term aging (90℃/3000h) - -
Tensile strength after aging Ultimate elongation after aging DIN EN ISO 527-1 DIN EN ISO 527-1 Rate of change ≤50%
Rate of change ≤50%
Heat shock 120℃, 120h No dripping, no flowing, no cracking
Cold bend -15℃, 22H, bending 180° No cracking
Flammability TL1010 ＜100mm/min
Dimensions
Size Inside Diameter (mm) Wall Thickness (mm)
Ø3.0 3.00+0.40 0.40±0.10
Ø4.0 4.00+0.40 0.50±0.15
Ø5.0 5.00+0.40 0.60±0.15
Ø6.0 6.00+0.40 0.60±0.15
Ø7.0 7.00+0.40 0.60±0.15
Ø8.0 8.00+0.40 0.70±0.15
Ø9.0 9.00+0.40 0.70±0.15
Ø10.0 10.00+0.50 0.70±0.15
Ø11.0 11.00+0.50 0.70±0.15
Ø12.0 12.00+0.50 0.80±0.15
Ø13.0 13.00+0.50 0.80±0.15
Ø14.0 14.00+0.50 0.80±0.15
Ø15.0 15.00+0.50 0.80±0.15
Ø16.0 16.00+0.70 1.00±0.20
Ø17.0 17.0+0.70 1.00±0.20
Ø18.0 18.0+0.70 1.00±0.20
Ø19.0 19.0+0.70 1.00±0.20
Ø20.0 20.0+0.70 1.20±0.20
Ø21.0 21.0+0.80 1.20±0.20
Ø22.0 22.0+0.80 1.20±0.20
Ø23.0 23.0+0.80 1.20±0.20
Ø24.0 24.0+0.80 1.20±0.20
Ø25.0 25.0+0.80 1.20±0.20
Ø26.0 26.0+0.80 1.20±0.20
Ø27.0 27.0+0.80 1.20±0.20
Ø28.0 28.0+0.80 1.20±0.20
Ø29.0 29.0+0.80 1.20±0.20
Ø30.0 30.0+1.00 1.20±0.20

Note: Custom sizes, colors and prints are available upon request.
