Heat Shrink Breakout Boot

Heat Shrink Breakout Boot

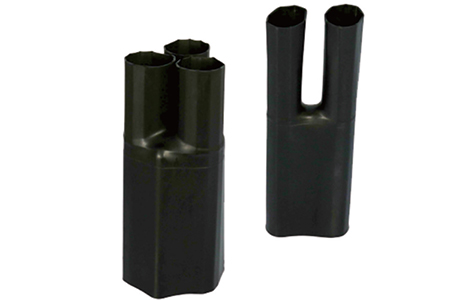

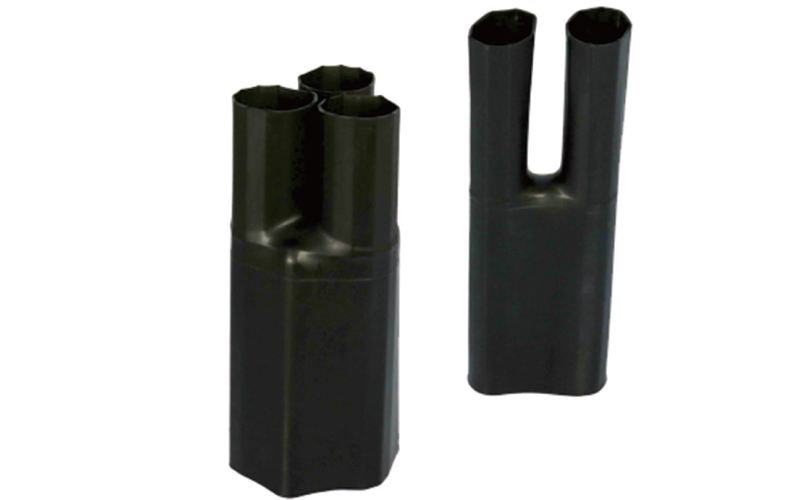

Our heat shrink breakout boot, made from cross-linked polyolefin material, offers superior sealing and protection for multi-core cable branching. With its adhesive-coated ends, it provides secure and waterproof sealing.

Request a Quote
Dimensions
Product Size As Supplied (mm) After Recovery (mm) Applicable Wire
Body Inside Diameter Finger Inside Diameter Total Height Body Inside Diameter Finger Inside Diameter 1kV
2 Core Heat Shrink Breakout Boot 00# ≥16 ≥8 60±3 ≤8.5 ≤3.5 --
0# ≥24 ≥12 140±5 ≥13 ≤5 4-6mm²
10-16mm²
1# ≥38 ≥20 145±5 ≤17 ≤7 25-50mm²
2# ≥48 ≥25 145±5 ≤22 ≤10 70-120mm²
3# ≥60 ≥35 140±5 ≤25 ≤11 150-240 mm²
4# ≥72 ≥40 140±5 -- -- 300-400 mm² 500-630 mm²
5# ≥145 ≥70 235±10 ≤62 ≤27 --
Product Size As Supplied (mm) After Recovery (mm) Applicable Wire
Body Inside Diameter Finger Inside Diameter Total Height Body Inside Diameter Finger Inside Diameter 1kV 10kV 35kV
3 Core Heat Shrink
Breakout Boot 		-2# ≥24 ≥11 140±5 ≤16 ≤5 4-6 mm²
10-16 mm² 		/ /
-1# ≥48 ≥18 170±5 ≤22 ≤7 25-50 mm² /
0# ≥60 ≥25 175±5 ≤28 ≤8 70-120 mm² / /
1# ≥70 ≥30 210±5 ≤36 ≤13 150-240 mm² 25-50 mm² /
2# ≥87 ≥39 220±5 ≤46 ≤16 300-400 mm² 70-120 mm² /
3# ≥110 ≥42 230±5 ≤54 ≤19 500-630 mm² 150-240 mm² /
4# ≥125 ≥58 240±5 ≤64 ≤25 / 300-400 mm²,
500-630 mm² 		25-50 mm²
70-120 mm²
150-240 mm²
5# ≥140 ≥65 240±5 ≤64 ≤25 / / 300-400 mm²
500-630 mm²
Product Size As Supplied (mm) After Recovery (mm) Applicable Wire
Body Inside Diameter Finger Inside Diameter Total Height Body Inside Diameter Finger Inside Diameter 1kV
4 Core Heat Shrink Breakout Boot 0# ≥38 ≥10 125±5 ≤18 ≤5 4-6 mm²
10-16 mm²
1# ≥50 ≥16 135±5 ≤25 ≤7 25-50mm²
2# ≥70 ≥23 185±5 ≤32 ≤9 70-120mm²
3# ≥82 ≥30 210±5 ≤45 ≤13 150-240mm²
4# ≥90 ≥35 210±5 ≤45 ≤13 300-400mm²
5# ≥109 ≥42 240±5 ≤54 ≤18 500-630mm²
Product Size As Supplied (mm) After Recovery (mm) Applicable Wire
Body Inside Diameter Finger Inside Diameter Total Height Body Inside Diameter Finger Inside Diameter 1kV
5 Core Heat Shrink Breakout Boot 0# ≥42 ≥11 130±5 ≤20 ≤5 4-6 mm²
10-16 mm²
1# ≥57 ≥15 170±5 ≤29 ≤7 25-50mm²
2# ≥70 ≥23 170±5 ≤38 ≤9 70-120mm²
3# ≥90 ≥30 180±5 ≤50 ≤13 150-240mm²
4# ≥120 ≥39 205±5 ≤48 ≤14 300-400mm²
